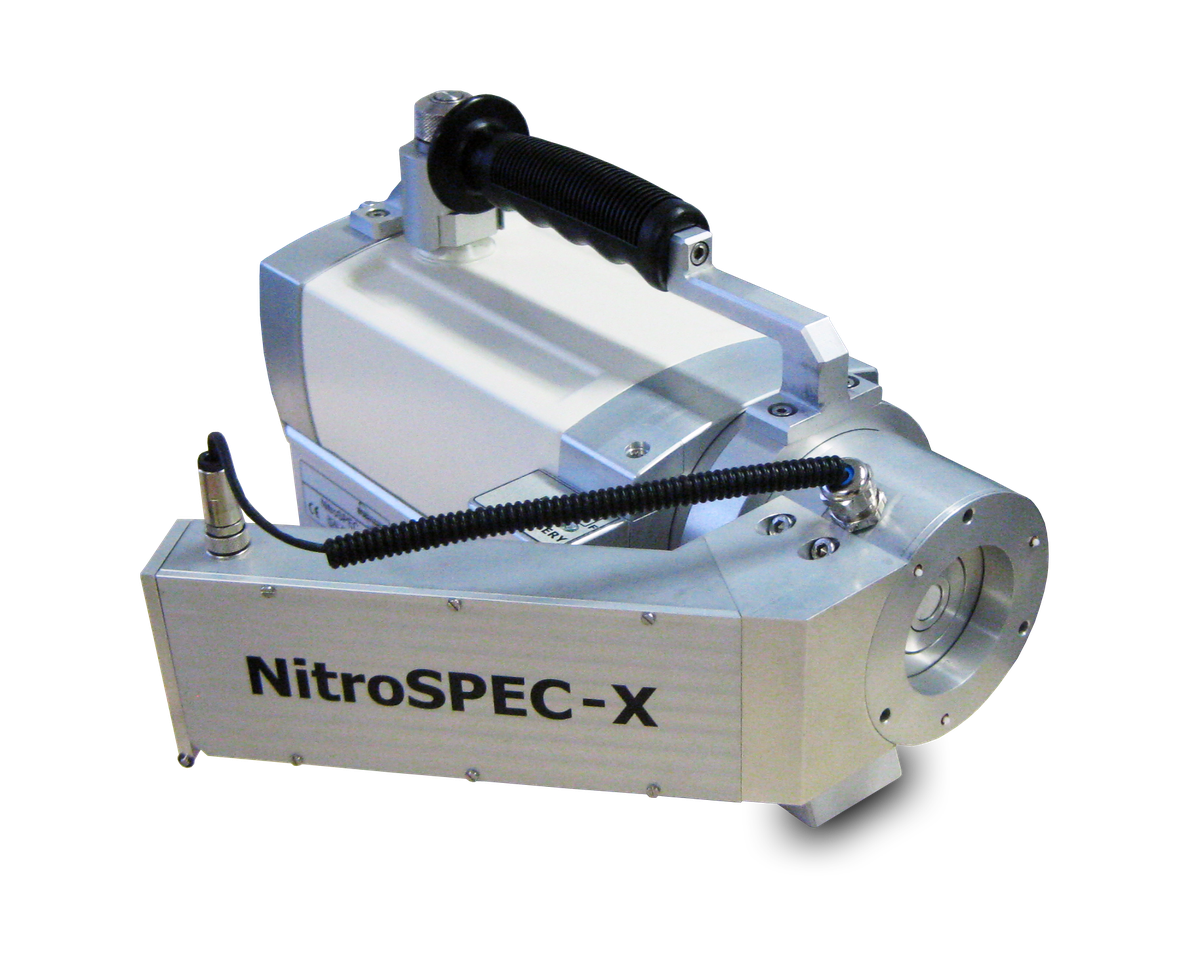

NitroSPEC-X Hand-Held XRF Spectrometer

DESCRIPTION

NitroSPEC-X is used for in-situ and laboratory measurement of characteristic X- and γ – radiation and is applicable for X-ray fluorescence spectrometry and gamma spectrometry.

Category:

Description

Application

NitroSPEC-X is used for in-situ and laboratory measurement of characteristic X- and γ – radiation and is applicable for X-ray fluorescence spectrometry and gamma spectrometry.

Features

  • Minimal sizes and weight
  • Liquid nitrogen filling time is less than 10 minutes
  • Minimal time for reaching of the proper temperature mode for the detector after liquid nitro-gen filling < 1hour
  • Minimal time for emptying remaining liquid nitrogen in the Dewar vessel < 3 minutes
  • Convenience and simplicity of operation and service
  • Built in spectrometric device

SPECIFICATION

Parameter Value
Detector active area, mm2
Detector thickness, mm
100
9
Registration energy range, keV 3 – 1500
Energy resolution
for energy 5.9 keV, eV:
for energy 122 keV, eV:
– shaping time constant τ= 6 s, measurements with MCA 527 at input count rate 1000 cps
< 195
< 495
Thickness of Be endcap window, mm 0,1
Detector operating voltage, V < 2000
HV inhibit capability +
The cooling system contains Dewar vessel with volume, l 0.8
Period between liquid nitrogen refilling, h > 20
Detector cool-down time, h < 1
Touch screen
Resolution, pixels
Diagonal, cm
800×400
10.8
Maximum power of X-ray tube, W 4
Autonomous operation time from the internal batteries, h 9
Weight with liquid nitrogen, kg ~ 6.1
Overall dimensions (with built-in X-ray tube), mm 330 x 140 x 240
The range of the operating temperatures ,° С from 0 to +40
